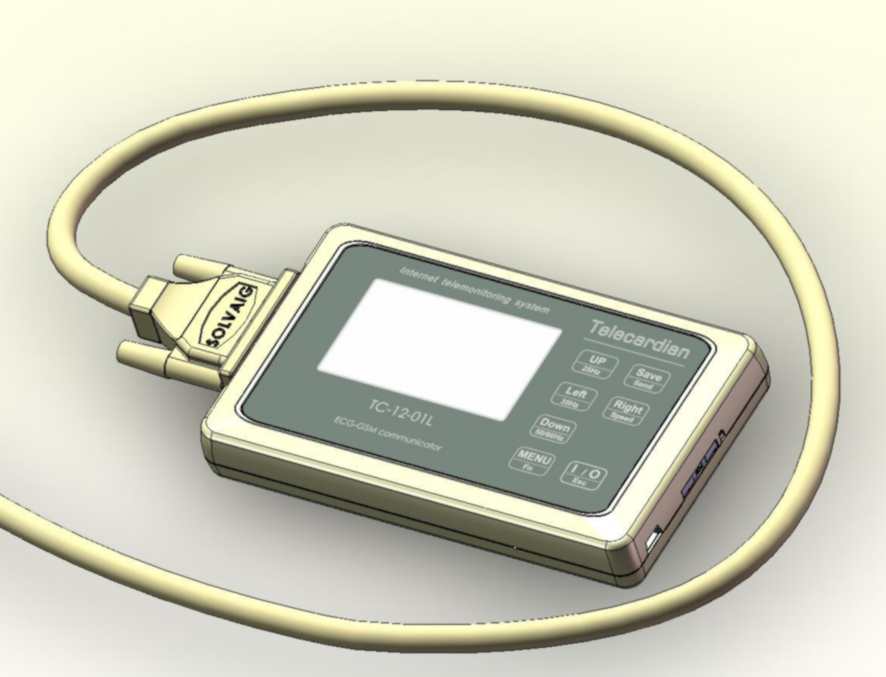

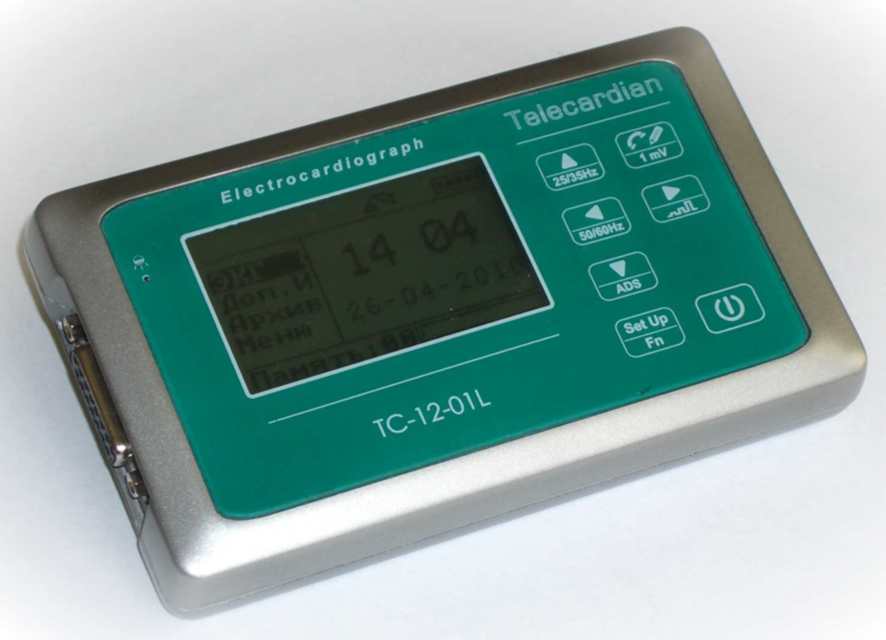

Electrocardiogphaf TC-12-01L
General information:
|
|
Electrocardiograph «ÒÑ-12-01L» — the portable device with standalone power supply for registration 12 standard assignments of an electrocardiogram with the subsequent transmission of the written data to Internet Call – the centre, using wireless technologies, or on the stationary personal computer. «How to use», PDF format. |
Possibilities:
-
Registration 12 standard assignments of an electrocardiogram (simultaneously) in the conditions ambulatory and remote from a medical institution, as medical staff, and personally the patient or members of his family;
- Protection against impulses defibrillator;
- Application of filters of protection against network interference of 50/60 Hz, tremulous filters 25 and (or) 35 Hz, the filter of restoring of an isoline (ADS) 0.05, 0.15 or 0.3 Hz;
- Mapping of schedules of an electrocardiogram on the built in graphics LSD-display;
- Speed regulation of mapping the signal of an electrocardiogram: 10, 25 or 50 mm/with;
- Rescaling of electrocardiogram signal mapping: 5, 10 or 20 mm / ìÂ;
- The analysis and calculations of parameters (the additional software for the personal computer);
- Record, storage and transmission of additional parameters: weight, temperature, pressure, a liquid, diuresis, fiber, glucose, cholesterol, lactate, three-glyceride, SO2, CO2 and others;
- Transmission of records of the electrocardiograms stored in memory, through the built in telemetering system or isolated (5200) USB — the interface;
- Call on any vocal number (reception of an entering call);
- Small dimensions, weight, absence of mechanical controls (touch button bar), convenient intuitively clear menu in Russian and English languages;
- Free remote upgrade of the built in software.
Technical characteristics:
|
Range of entry powers |
0,01÷10,0 mV |
|
Frequency range |
0,05÷150 Hz |
|
Transformation / Record frequency |
> 10 MOm |
|
Entry resistance |
6000/ 600 Hz |
| Suppression of inphase interferences |
> 100 dB |
| Digital filter |
0.15, 0.3, 25, 35, 25+35, 50/60 Hz |
|
Record duration of a fragment |
7, 14 or 21 sec |
|
The common duration of records |
10 min |
|
The display |
LCD 2.75'' (128Õ64) monochrome (with highlighting) |
|
Interfaces |
GSM 900/1800/1900 MHz GPRS, CSD, HCSD, phone USB (5200Â) |
|
Operation time in modes: waiting, transmission records |
90 days, 12 hours/ 200 sessions |
|
Power supply |
AC/DC ~220Â 50/60 Hz, The built in accumulator or the onboard network of the car |
|
Protection |
IEC60601-1. class II, type ÑF |
|
Overall dimensions |
143õ86õ23 mm |
|
Weight |
240 g |
Completeness:
|
Electrocardiograph TS-12-01L, pieces |
1 |
|
Cable of assignments standard 10 contacts with protection from fibrillation, pieces |
1 |
| Electrode for limb, for adult, pieces |
4 |
| Electrode sticking, for adult, pieces |
6 |
| Gel-paste electrode current-carrying, a bottle of 280 ml, pieces |
1 |
|
The an accumulator battery 3.7Â 1400mA/ch, Li-Ion (built in), pieces |
1 |
|
Power unit network, pieces |
1 |
| The power adapter automobile, pieces |
for order |
|
Cover for the electrocardiograph, piece |
1 |
|
How to use instruction, the brochure or CD-disk, pieces |
1 |
|
Packing (bag-packing), pieces |
1 |
